Magic Frame - Docs

Wrap a wireframe selection in a Magic Frame and let AI turn it into working HTML — previewable, copyable, exportable from the canvas.

The plan for Magic Frame is to make it the fastest way to go from a hand-drawn UI sketch to real, runnable HTML. You'd draw a button, a header, an input, a card. You'd wrap them in a Magic Frame. CorriDraw would send the wireframe to a diagram-to-code service and drop the result back onto the canvas as an interactive iframe sitting right next to the original sketch. Tweak the sketch, regenerate, and iterate without ever leaving the editor.

The intended element type is magicframe and the tool's tooltip will read Wireframe to code. The output will be a regular CorriDraw iframe element with its customData.generationData populated, which is why you'll be able to drag it, resize it, copy it, or export the whole canvas with the rendered HTML baked in.

Create a Magic Frame

There are two paths into a Magic Frame, and they exist because wireframing is rarely linear — sometimes you sketch first and decide afterwards, sometimes you scope the area before drawing. Both paths start at the wand-shaped Magic Frame button in the top-right of the toolbar.

Wrap an existing selection. Drag a marquee around the shapes you want to convert (or shift-click them one by one), then click the wand icon in the top-right of the toolbar. CorriDraw auto-creates a Magic Frame around the selection (with a 50px padding) and immediately fires the generation. On touch, long-press a shape to start a multi-select, tap the others, then tap the wand button.
Draw the frame first. Click the wand icon with nothing selected, then click and drag out a rectangle on the canvas. Drop your shapes inside. When you are ready, click the frame to select it and click Wireframe to code on the on-canvas action button that appears above it.

The wand-shaped Magic Frame tool highlighted in the top toolbar, with a hand-drawn login form selected on the canvas underneath. — Figure 1 — the Magic Frame tool lives next to the Frame tool in the top toolbar.

What goes inside the frame

Anything overlapping the frame becomes part of the prompt — rectangles become containers, ellipses become buttons, text labels become real text, arrows are ignored as instructional. The cleaner the wireframe, the closer the generated HTML matches your intent. A few rules of thumb:

Use real text for labels, headings, and placeholder copy. Click the text tool, click on the canvas, and type. The AI reads the strings literally and renders them in the output.
Group related controls (a label + its input) close together so the layout engine treats them as one row.
Keep aspect ratios honest. If you want a hero image, draw a rectangle with the right ratio — the model uses the bounding box to size things.
Don't bury notes inside the frame unless you want them rendered. Put scratch notes outside.

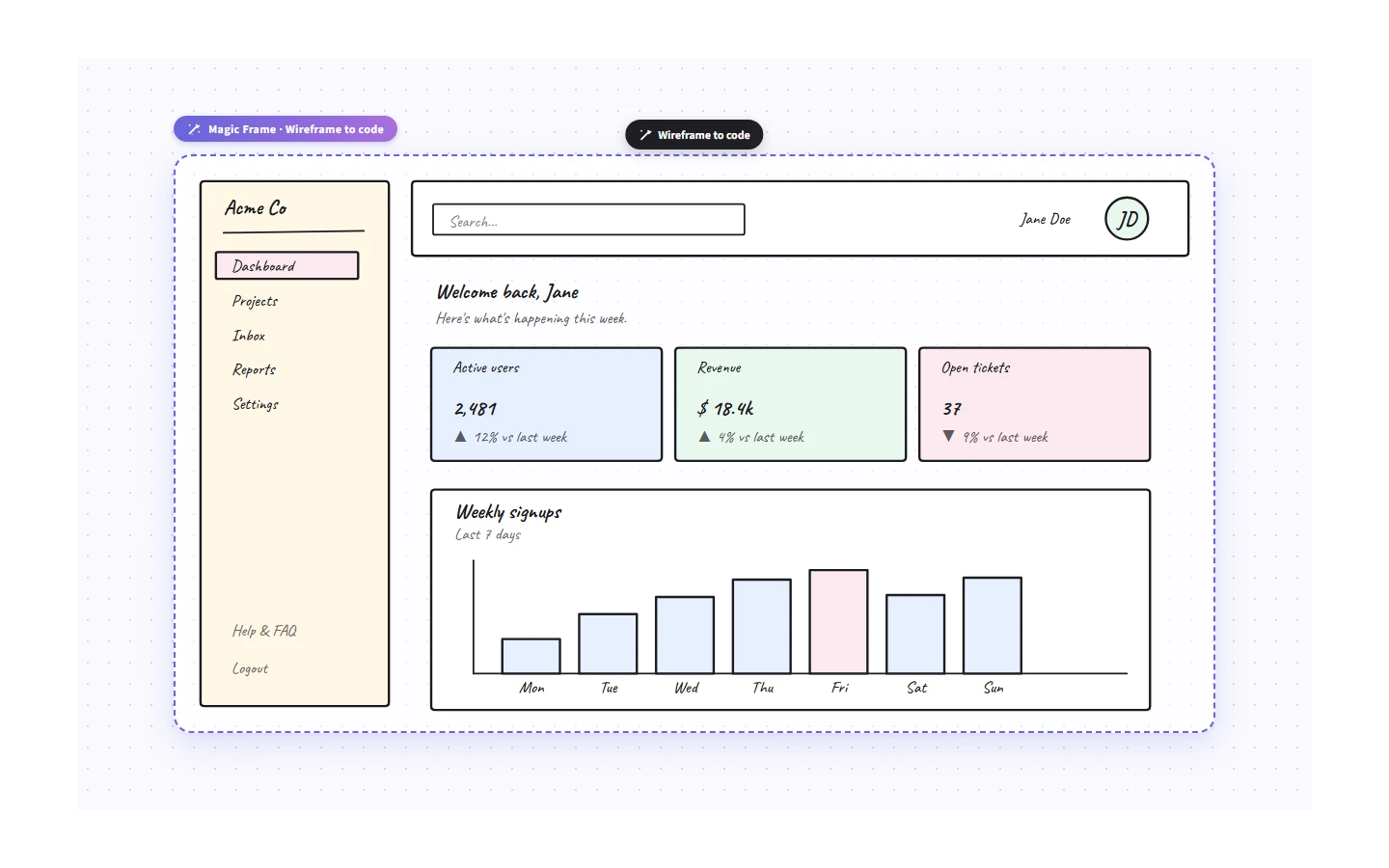

Figure 2 — a wireframe ready to convert. Real text labels, clear grouping, no stray annotations.

Generate, preview, iterate

Triggering generation drops a placeholder iframe to the right of your frame (offset by 30 pixels, matching the source dimensions) showing a pending spinner. When the response arrives, that placeholder swaps in the real rendered page. You can interact with it — buttons hover, inputs accept focus, links don't navigate (the iframe is sandboxed, that's intentional).

Click the generated iframe to select it, and two action buttons appear above it:

Copy source — click to copy the full <!DOCTYPE html> … </html> document to your clipboard so you can paste it into a code editor.
Enter fullscreen — click to pop the iframe out to fill the browser window for a real-world preview.

To iterate, edit the wireframe inside the original frame, click the frame to select it, then click Wireframe to code again — a fresh iframe appears, leaving the previous version on the canvas as a side-by-side comparison. Click the older ones and press Delete once you're happy. Because every iframe is a regular element, your version history captures each generation.

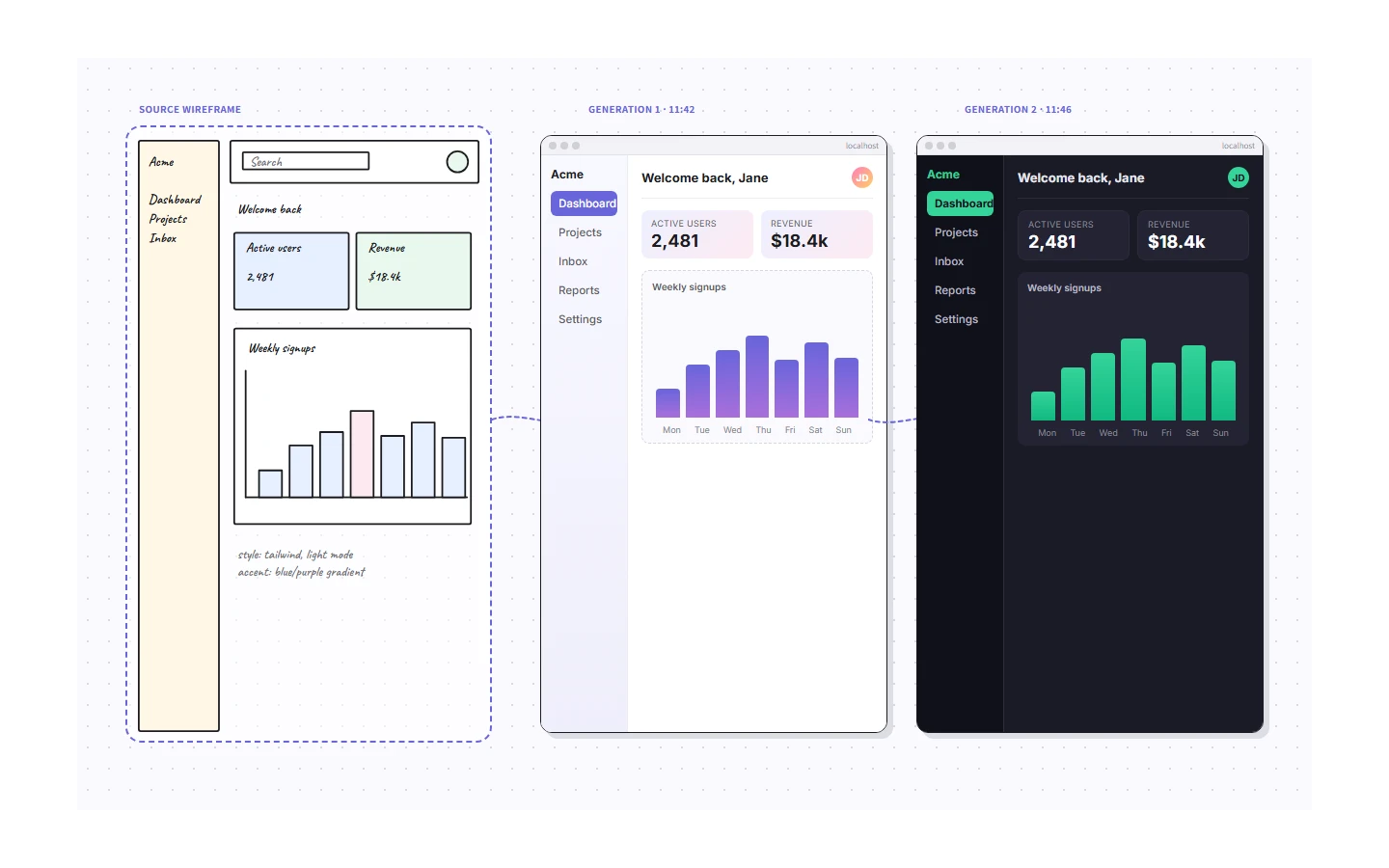

Side-by-side view — the wireframe Magic Frame on the left, two generated iframes to the right showing two iterations of a rendered dashboard. — Figure 3 — successive generations live side-by-side so you can compare results.

Prompt-style hints

Magic Frame does not currently take a free-text prompt — there is no input box on the frame itself. Hints are baked into the wireframe itself: the shapes, their layout, and any text you write inside them. If you want to nudge the model toward a particular framework or styling (Tailwind, dark mode, rounded corners), click the text tool and add a labelled rectangle inside the frame with that instruction as text. The text in the frame is part of the generation context, so the model treats those labels as guidance rather than rendered copy.

When generation fails

Empty frames refuse to generate (you'll see Cannot generate from an empty frame). If the AI service times out or returns nothing, the placeholder iframe flips to an error state with code ERR_OAI. Click the failed iframe and press Delete to remove it, then click the frame and trigger Wireframe to code again — usually a slightly cleaner wireframe or a fresh attempt resolves it. See Troubleshooting for the full failure matrix.

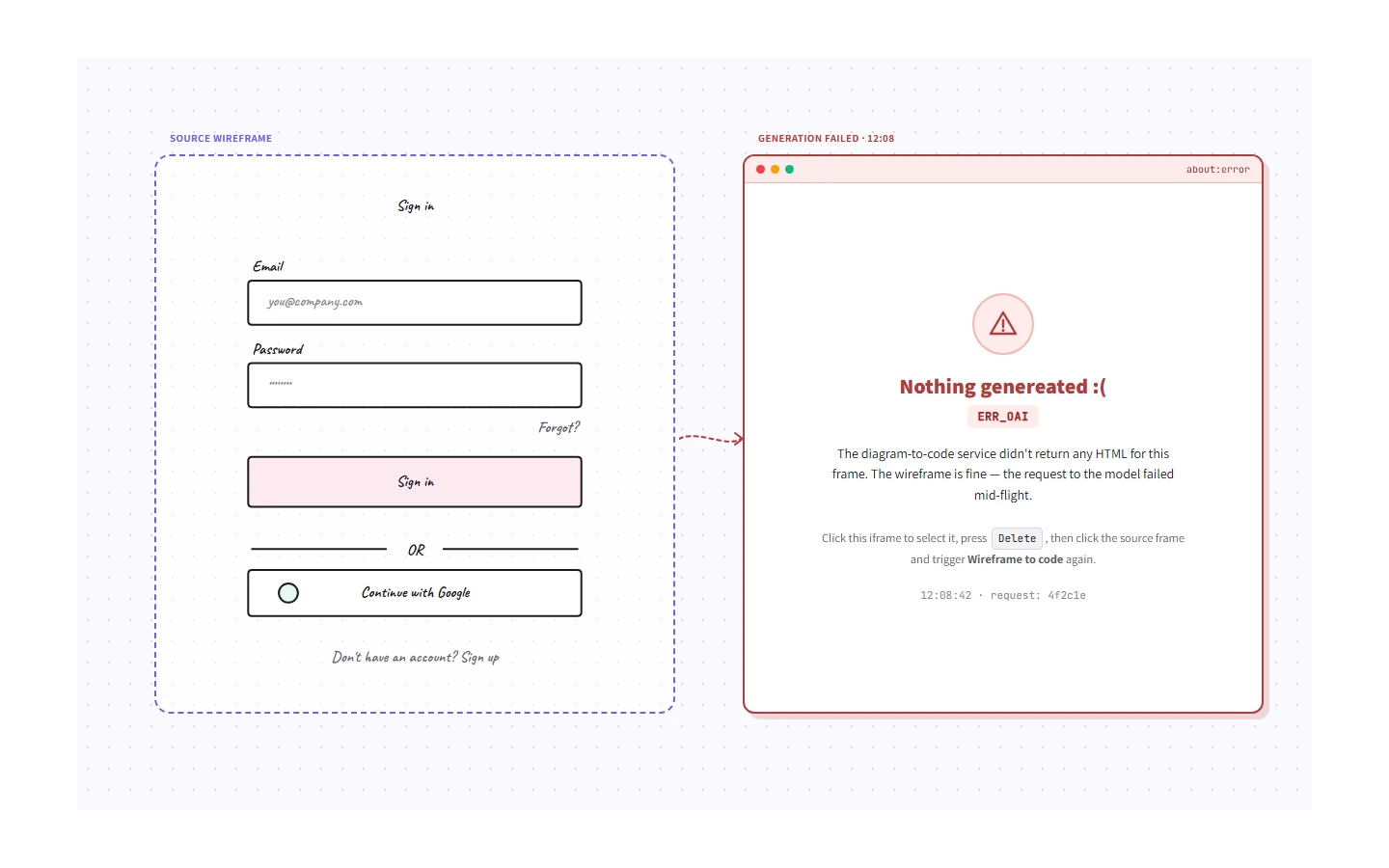

A failed Magic Frame iframe showing the ERR_OAI error state with a retry hint, alongside the source wireframe. — Figure 4 — generation errors stay on the canvas as inline error iframes.

Exporting the result

A generated iframe is a first-class canvas element. PNG and SVG exports rasterise the rendered HTML into the image. JSON exports preserve the source HTML inside the element's customData, so re-opening the file in CorriDraw restores the live preview. To grab just the HTML for use elsewhere, click the iframe to select it and click the Copy source action button above it.

Magic Frame works best as a starting point: convert a wireframe, copy the source, and refine the HTML in your editor of choice. It's not a replacement for hand-tuned production code — it's a fast bridge between sketch and skeleton.
